Navbea Door Sensor

Açıklama

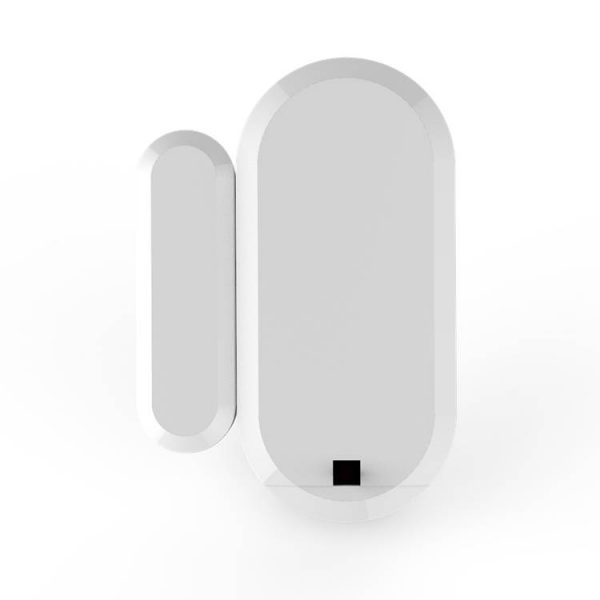

S4 Door / Window Sensor

S4 Door and Window Sensor is loaded with Bluetooth Low Energy 5.0 hardware platform, can be installed on the doors, windows and even desk drawers. By detecting the opening and closing of doors and windows, the S4 can wirelessly notify users of arrivals and departures. The S4 consists of a main body, mounted to the door or window frame, and a magnet to be mounted to the door or window. The S4 Door and Window Sensor is an affordable way to add security and automation to the existing smart IoT system.

Specification

Protocol Options

iBeacon

Yes

Radio

Wireless Protocol

Bluetooth 5.0

Antenna

PCB antenna

Transmit Power

0dBm (-20~+4dBm)

Data storage

2,000 records

Range

Up to 100 meters

Battery

Model

CR2032*1

Capacity

220mAh

Replaceable

Yes

Operating Voltage

DC3.0V

Operating Temperature

-20°C to +60°C (Battery limit)

Operating Humidity

0~95%RH(non-condensing)

Battery life

13 months

Product Compliance

Certification

CE, FCC, RoHS,

Service

Configuration App

MSensor, iOS & Android

Warranty

1 year



Parameters

Material

ABS

Dimensions

Main body size: 55×26.2x13mm

Magnet size: 38.5×12.5x11mm

Weight

26.6g

Chipset

Nordic nRF52

Color

White, other color can be tailored

Built-in Sensor

Magnetic sensor

Power on

Remove the insulation sheet

Data storage switch

Turn off by default

Connection Configuration Distance

25 meters
